Car RC Radio Controllers | 2.4GHz Long Range RC Transmitter | WFLY Technology

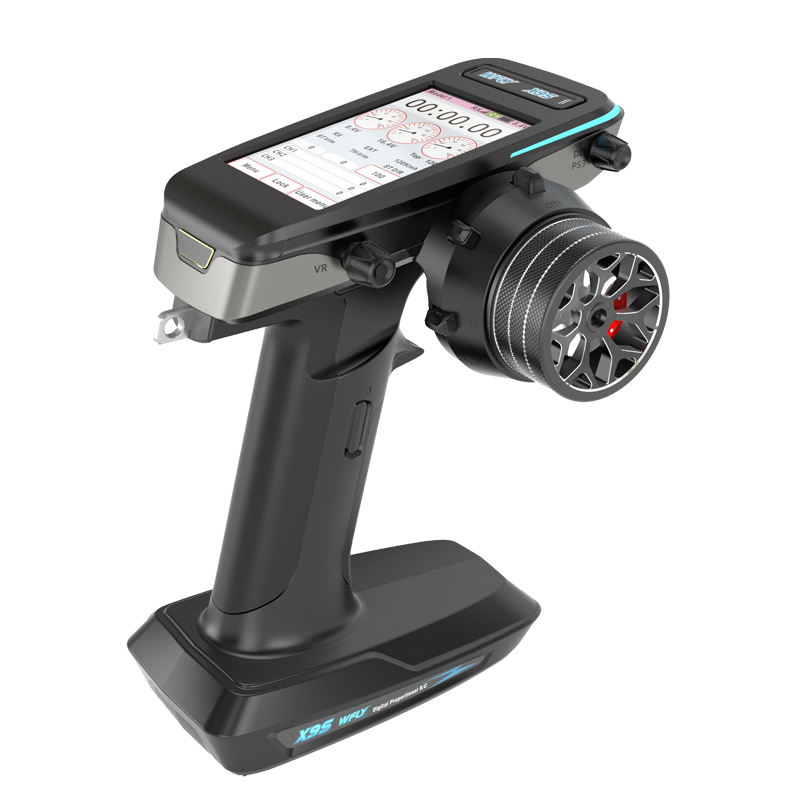

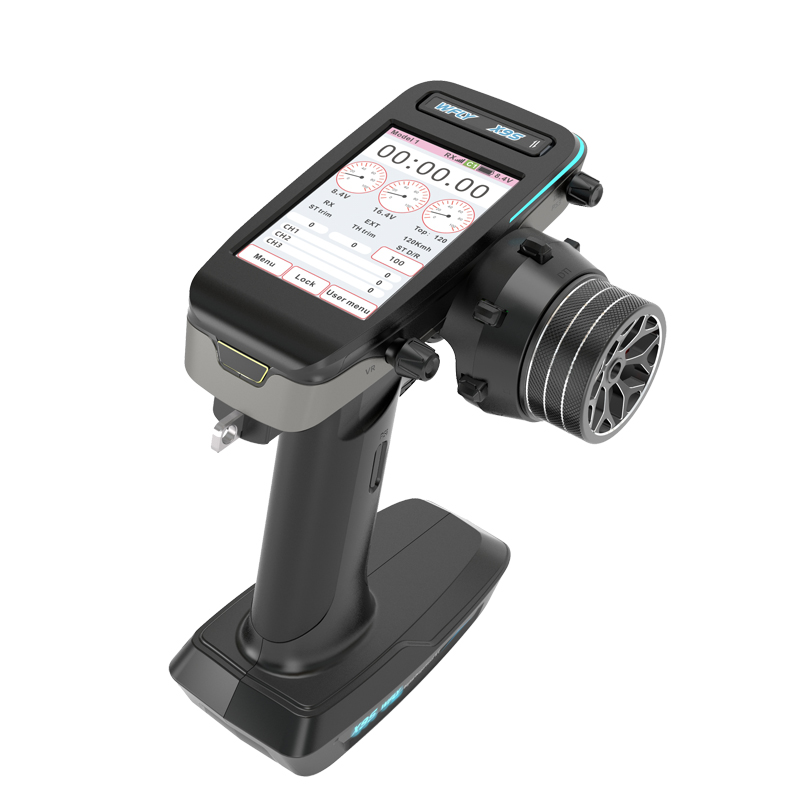

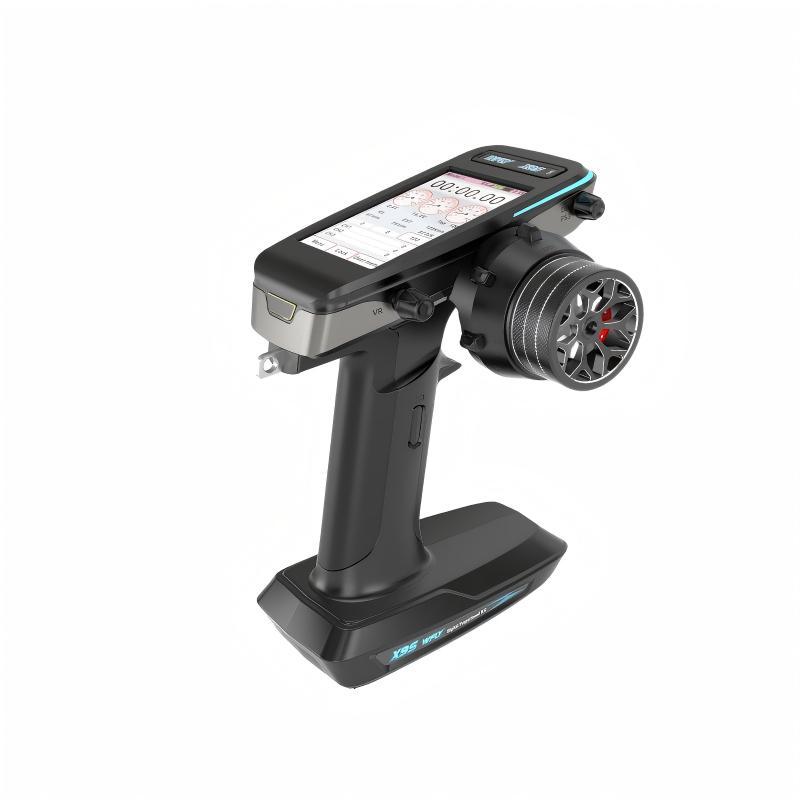

WFLY X9S RC Radio & RG209S Receiver
About WFLY X9S RC Radio
Thank you for purchasing WFLY surface radio X9S kits! WFLY X9S is a professional 9CH 2.4GHz LORA FHSS RC radio transmitter with RG209S receiver, built-in Hall sensor gimbals, 3.5ms ultra-low latency and 4096 high resolution.
It supports cruise control, 15W fast charging, long range over 600m, widely used for RC cars, boats, tanks, robot and other model devices.
WFLY X9S Transmitter Parameters
| Model Type | X9S |
| Channel | 9 channels |
| Latency | 3.5ms |
| Hall Sensor Gimbals | Both trigger and runner with hall gimbals |
| Bearing Numbers | Total 2 bearings with double protection |
| Cruise Control | Support |
| Working Voltage | 7.0V~8.4V |
| Battery Support | 2S Lipo battery (battery compartment free inside) |
| Charging | 15W fast charging, Type C 1S Lipo charging |
| Working Current | 260~400mA |
| Frequency Hopping | FHSS |
| Modulation | LORA |
| Resolution | 4096 |
| Frequency Band | 2.4GHz two-way transmission |
| Transmission Power | ≤100mw |
| Control Range | ＞600m (ideal environment) |
| Temperature Range | -10℃—+60℃ |
| Simulator Interface | 3.5mm (PPM) |
| Model Storage | 40 models memory |
| Program Mix | 5 groups |
| Voice Broadcast | Support |
| Language | English |
| Upgrade | USB online upgrade |
| Servo Compatibility | Support 180/270° servo |
| Display | 3.5” 480*320 capacitive touch screen |
| Dimension | 185x147x110mm |
| Weight | 318g |
Receiver & SG01 GPS Module Parameters
| RG206S Receiver | |
| Channel | 6 channels (PWM) |
| Dimension | 33.5x22.0x12.5mm |
| Weight | 7.6g |
| RG209S Receiver | |
| Channel | 9 channels (PWM) |
| Weight | 7.9g |
| Working Current | 95mA |
| Frequency Band | 2.4GHz two way transmission |
| Working Voltage | 3.5V~9.0V |
| Modulation | LORA |
| GPS Function | Support speed detection |
| Resolution | Full channel 4096 |
| Temperature | -10℃—+60℃ |
| Voltage Detection | DC 1~36V external voltage detection |
| Protocol | Support W.BUS / S.BUS |
| Upgrade | USB online upgrade |

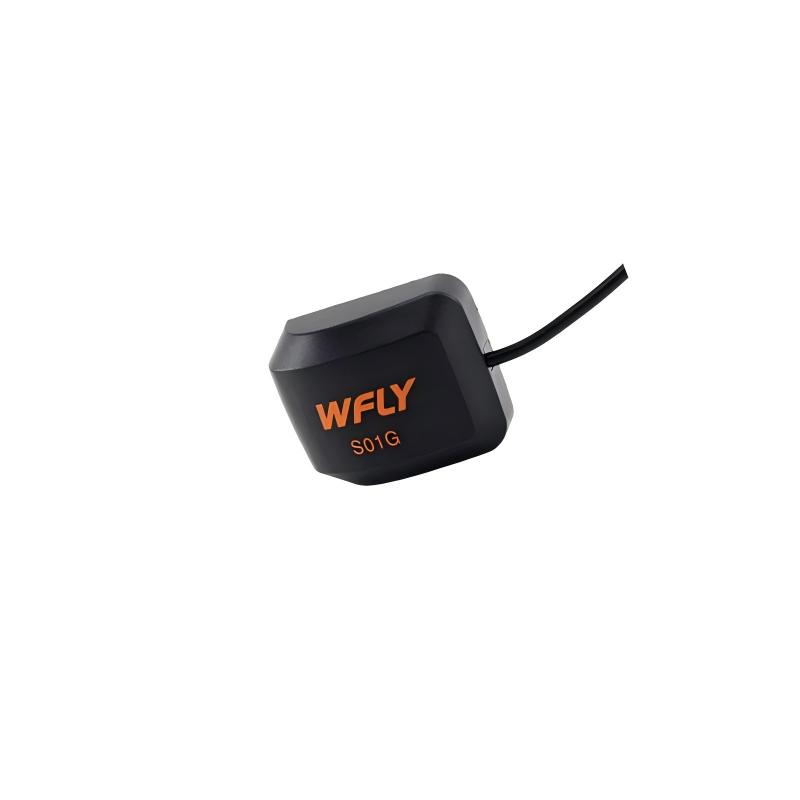

| SG01 GPS Module | |
| Function | Support speed detection |
| Voltage Range | 3.7~5V |
| Dimension | 37x49x17mm |
| Application | RC cars, boats, tanks, robot etc. |
Package Included
1 x X9S Transmitter
1 x RG209S Receiver
1 x 18650 Battery Tray (inside X9S)
1 x User Manual
1 x Radio Screen Protector
1 x Radio Runner Foam
1x Oxford Canvas Handbag
Important Warning & Compatibility Tips
1. The old version of RG206S / RG209S receiver is not compatible with new X9S transmitter. Please upgrade receiver firmware to new version for binding.
2. New version receiver is marked with "new" sticker on housing; without sticker belongs to old version, cannot match X9S directly.
3. Firmware download path: WFLY official website www.wflysz.com → Support → X9 → Download → WFLY RG206S RG209S Firmware Upgrade Package.
4. If you use X9S with "NEW" sticker RG209S, please upgrade X9S to high speed version.
Application
WFLY X9S radio system is perfectly suitable for RC cars, boats, tanks, robots and various unmanned model devices. We are confident that you will find lots of joy and fun with this professional radio system.
Get QuoteContact Us
For WFLY X9S wholesale, OEM order or technical firmware support, please contact us directly.
Email: sale@radiocontrollers.com
Keywords: WFLY X9S, RG209S Receiver, 9CH RC Radio, LORA 2.4GHz Transmitter
