RC Drone Transmitter | 2.4GHz Long Range RC Transmitter | WFLY Technology

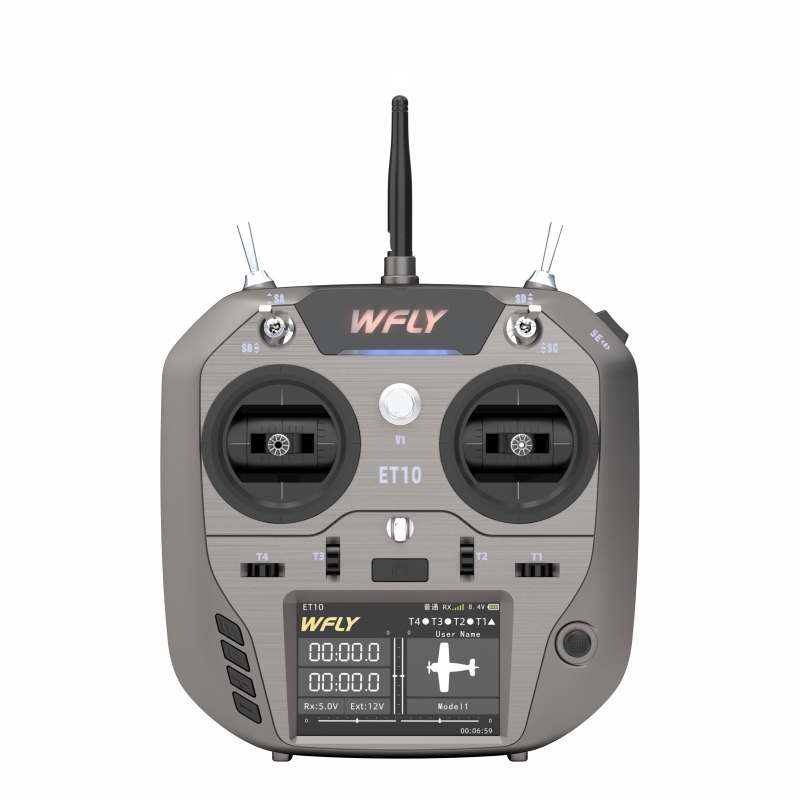

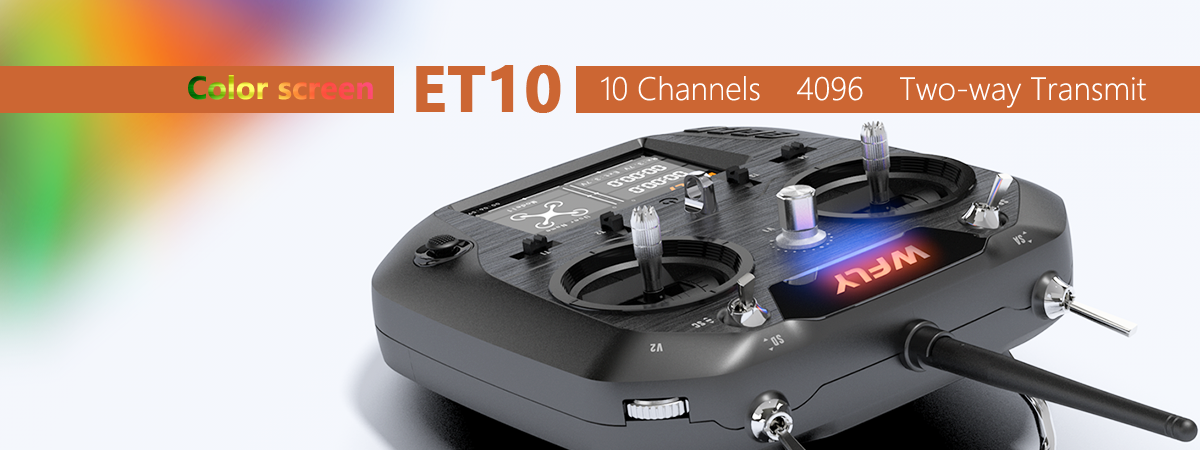

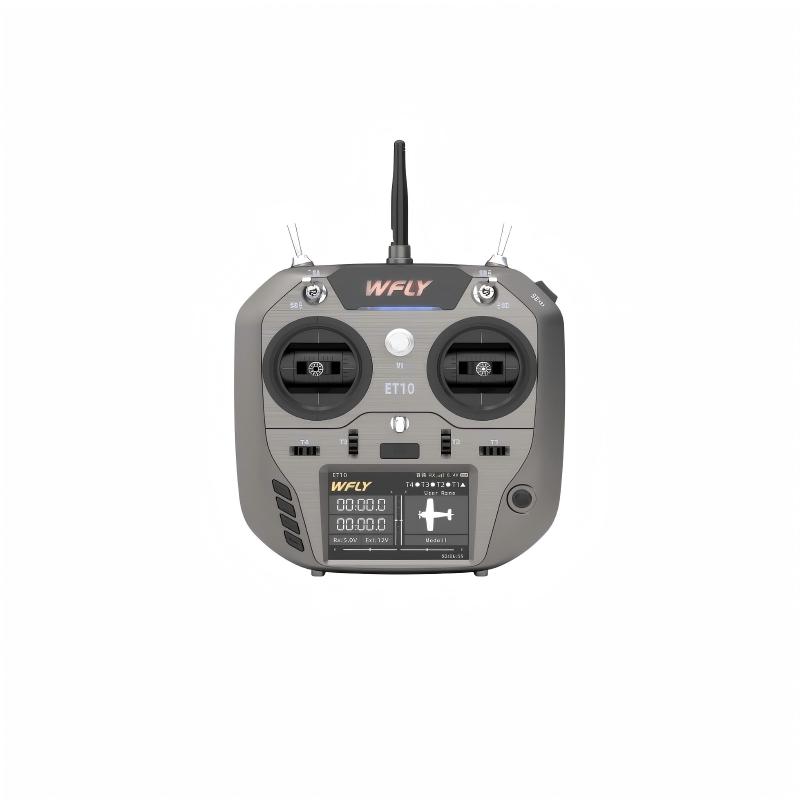

WFLY ET10 10CH RC Transmitter
About WFLY ET10 Transmitter
WFLY ET10 is the upgraded version of the ET series, featuring 10 full proportional channels and 4096 high resolution. It adopts liquid metal flow texture, expandable external RF module NANO interface (compatible with ELRS, TBS), optional Hall sensor gimbals, and upgraded battery compartment.
With 2.4GHz 64-point frequency hopping, 3.6ms fast response, two-way transmission, 3.5-inch 480*320 TFT color touch screen, and USB online upgrade, ET10 delivers stable, smooth and professional control for helicopters, airplanes, multi-rotors, vehicles, ships and industrial models.
Key Features
1. 10 linear channels with full channel 4096 high resolution
2. Optional Hall sensor gimbals or potentiometer rocker with full bearing design
3. Expandable NANO RF module interface, compatible with ELRS/TBS, Nano-Micro free conversion
4. 2.4GHz new FHSS, two-way transmission, 64-point frequency hopping, 3.6ms fast response
5. 3.5-inch 480*320 TFT color touch screen, support Chinese & English dual language
6. USB online upgrade, support 2S lithium balance charge (7.4V working voltage)
7. 20 sets model data storage, 5 groups mixed control programming
8. Liquid metal flow texture appearance, working current ≤260mA, ultra-long endurance
Technical Specifications
| Transmitter (ET10) | |
|---|---|
| Brand | WFLY |
| Model | ET10 |
| Channels | 10 linear channels |
| Working Voltage | 7.4V (2cell Lithium battery) |
| Working Current | ≤260mA |
| Resolution | Full Channel 4096 Resolution |
| Frequency Band | 2.4GHz (Bidirectional) |
| Frequency Hopping | New FHSS Frequency Hopping (64points, 3.6ms response) |
| Data Storage | 20 models |
| Program Control | 5 Groups Mixed Control |
| Language | Chinese, English |
| Display | 3.5inch touch, 480*320, TFT color display |
| Upgrade | USB online upgrade |
| Applications | Helicopter, Airplane, Multi-Rotors, Vehicle, Ship |
| RF Interface | NANO interface - Micro interface free conversion, compatible with ELRS/TBS |
| Receiver (RF209S) | |
| Model | RF209S |
| Frequency | 2.4 GHz |
| Working Voltage | 3.7 V-8.4 V |
| Working Current | 75 mA |
| Resolution | Full Channel 4096 Resolution |
| PWM | 9 Channel (Mode A) |
| PPM | Support |
| W.BUS | Compatible with S.BUS |
| W.BUS2 | Telemetry Sensor Input |
| Bidirectional Transmission | Support |
| Fail Save | Support |
| Online Upgrade | Support |
| External Voltage Detection | DC 0-96V |
| Size | 27×14×51mm |
| Weight | 14.6g |
| Applications | Helicopter, Airplane, Multi-Rotors, Vehicle, Ship |
Core Advantages
10CH Full Proportional
10 linear channels with full 4096 resolution, super smooth and precise control.
Optional Hall Sensor Gimbal
No contact, no attrition, smoother control and longer service life.
Expandable RF Module
NANO interface compatible with ELRS/TBS, Nano-Micro free conversion.
2.4GHz New FHSS
Two-way transmission, 64-point frequency hopping, strong anti-interference.
Color Touch Screen
3.5-inch 480*320 TFT touch screen, Chinese/English dual language.
Professional Functions
20 model storage, 5 groups mix control, USB upgrade, low power consumption.
Application Scenarios
WFLY ET10 is widely used in Helicopter, Airplane, Multi-Rotors, Vehicle, Ship, FPV drones, agricultural drones, electric power line inspection robots and various industrial unmanned systems.
It is an ideal choice for both hobby users and professional industrial applications requiring high reliability and multi-channel control.
Get QuoteContact Us
For orders, OEM projects, or technical support of WFLY ET10 RC transmitter, please contact us directly.
Email: sale@radiocontrollers.com
Keywords: WFLY ET10, 10CH RC transmitter, 4096 resolution, ELRS compatible
