RC Radio Controller

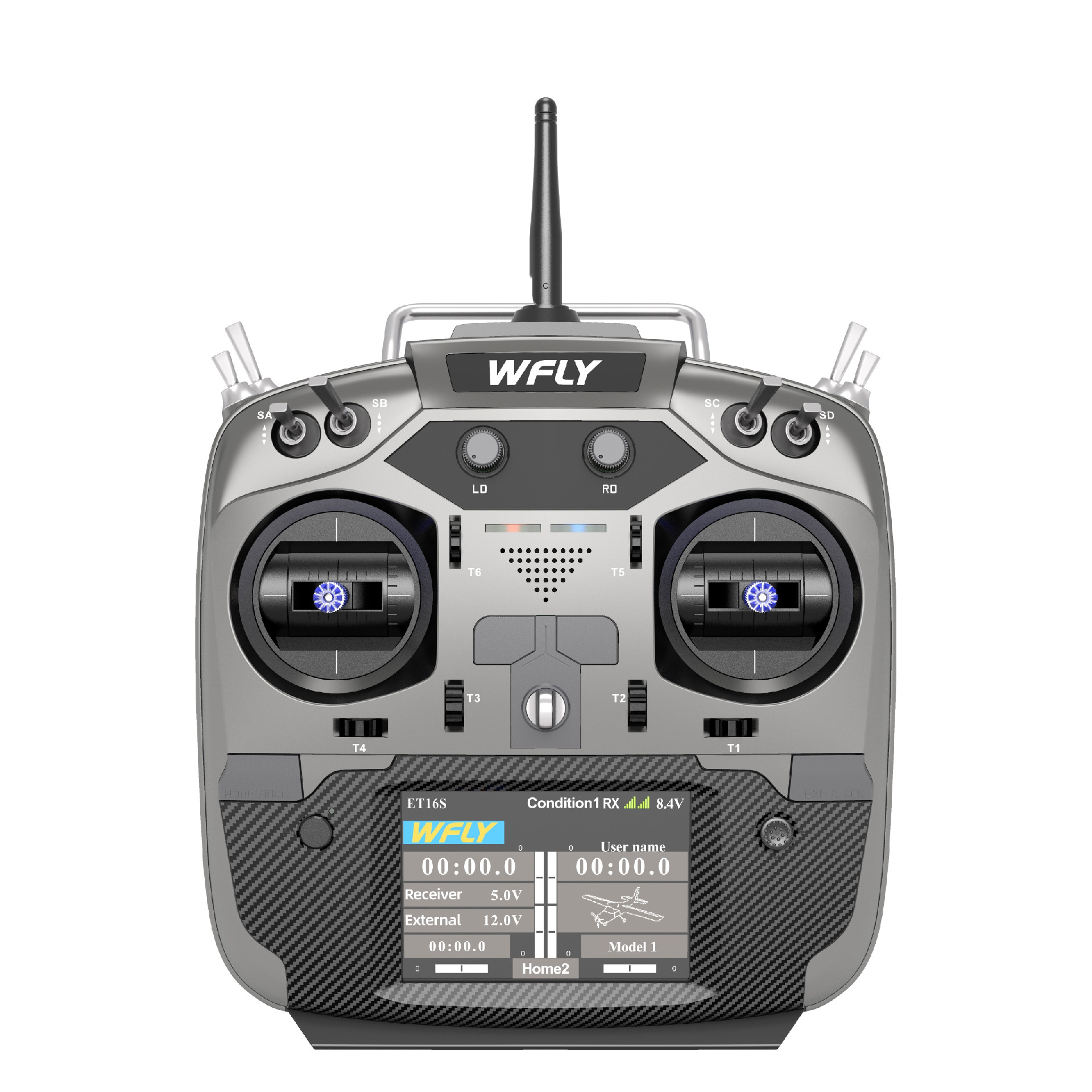

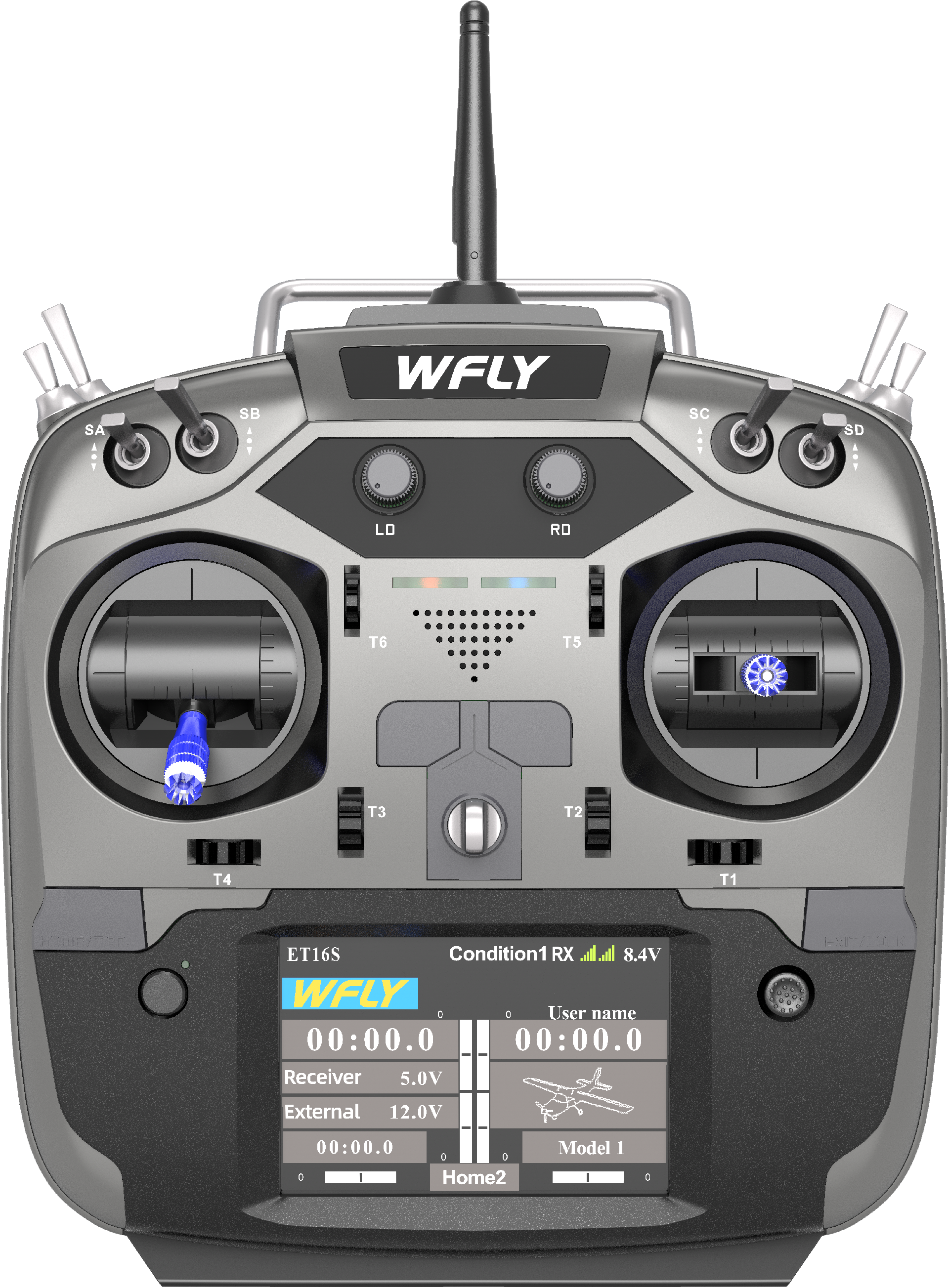

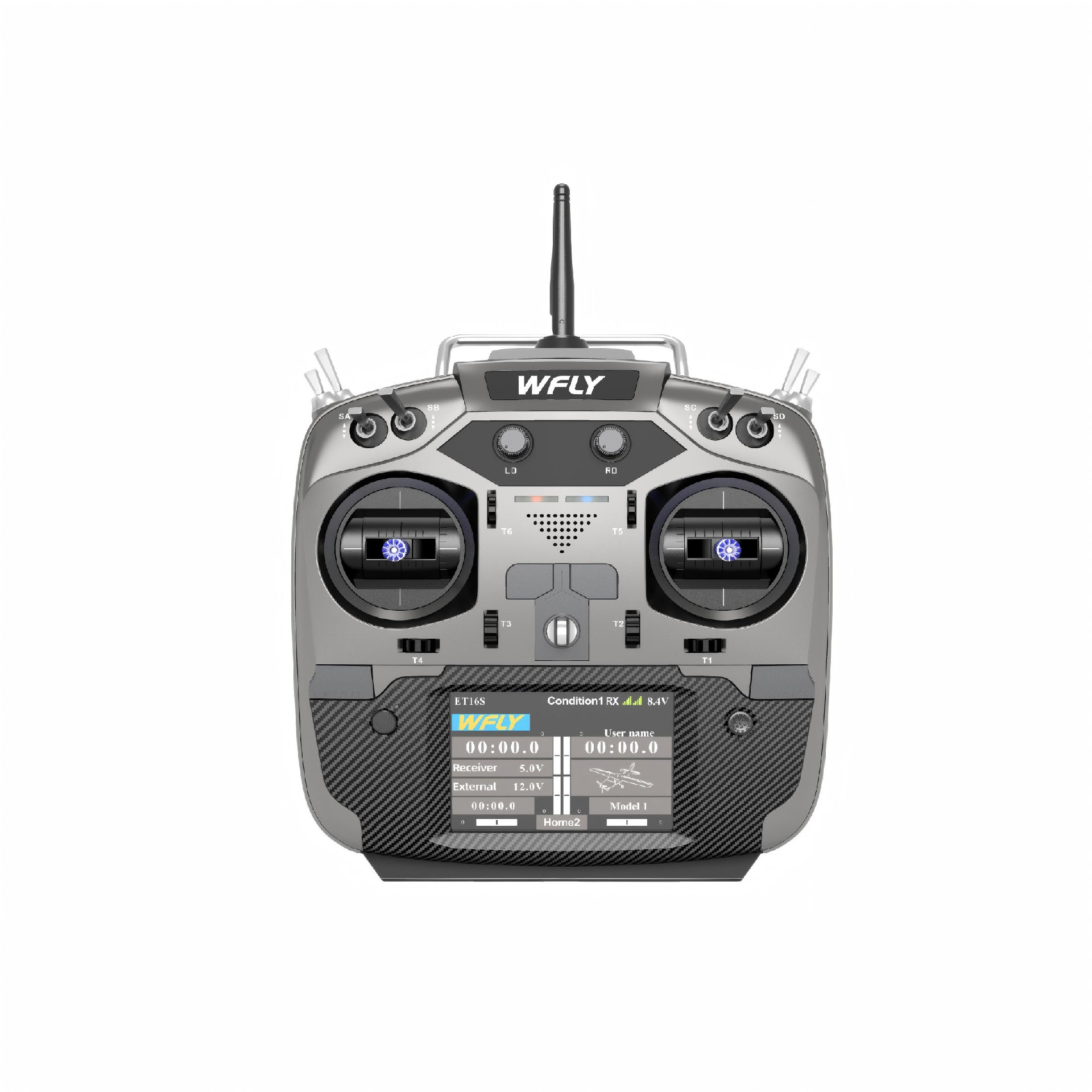

WFLY ET16S 16CH RC Radio Controller
About WFLY ET16S
WFLY ET16S is a professional 16-channel 2.4GHz RC radio controller, equipped with high-quality Hall sensor gimbals, 4096 high resolution, and a 3.5-inch touch color screen. It supports both internal WFLY protocol and external protocols via JR module slot, making it ideal for FPV racers, drones, UAV and unmanned vehicles.
The transmitter features anti-fingerprint paint, wireless model copy, 64-point frequency hopping and two-way transmission, delivering stable and precise control for various RC models.
Advantages for ET16S
Hall Sensor Gimbals
High-quality Hall sensor gimbals with CNC aluminum facias, providing smoother control and longer service life for FPV racers.
JR Bay Interface
Standard JR module slot supports 4-in-1 module, TBS CRSF, FrSky R9M and other external modules for flexible protocol expansion.
Industrial Touch Screen
3.5-inch TFT touch color screen with 480*320 resolution, outdoor readable panel for clear display under sunlight.
Anti-Fingerprint Shell
WFLY unique no-fingerprint technical hand-feel paint shell, keeping the transmitter clean with better grip.
Dual Protocol Support
Supports 2 systems: internal WFLY protocol with WFLY RX, and external protocols with added 4-in-1/TBS/R9M modules.
📢 Good News: WFLY ET16S packs with a standard screen protector film since July 18, 2023!
Technical Specifications
| Brand Name | WFLY |
|---|---|
| Model Number | ET16S |
| TX Channel | 16 Linear Channels |
| Control Accuracy | 4096 high resolution |
| Frequency | 2.4GHz, 64-point frequency hopping |
| Protocol | Internal WFLY protocol, supports W.BUS / W.BUS2, JR bay for external modules |
| Response Time | 3.6ms fast response |
| Display | 3.5-inch color touch screen |
| Program Mixes | 10 sets program mixes |
| Features | Wireless copy, receiver port setting, switch customization, voice broadcast, vibration feedback, relay flight |
| Upgrade | USB online upgrade (Windows only) |
WFLY Standard Packing List
1. 1pcs ET16S Radio Transmitter
2. 1pcs RF209S Receiver (Optional)
3. 1pcs 18650 battery tray
4. 1pcs WFLY neck strap
5. 1pcs Voltage inspection wire
6. 1pcs radio screen protector film
Why Choose WFLY ET16S
WFLY ET16S is a professional-grade 16-channel RC radio controller designed for demanding FPV pilots and industrial users. It combines high-precision Hall gimbals, dual-protocol support, and rich features in one package.
With WFLY's 20+ years of R&D experience, the ET16S delivers stable long-range control, fast response, and reliable anti-interference performance, making it a top choice for drones, UAV, and unmanned vehicles worldwide.
