WFLY RG202Mini rc receiver for long range FPV racing MG216 RF module
WFLY RG202Mini rc receiver for long range FPV racing MG216 RF module
About WFLY RG202Mini Receiver

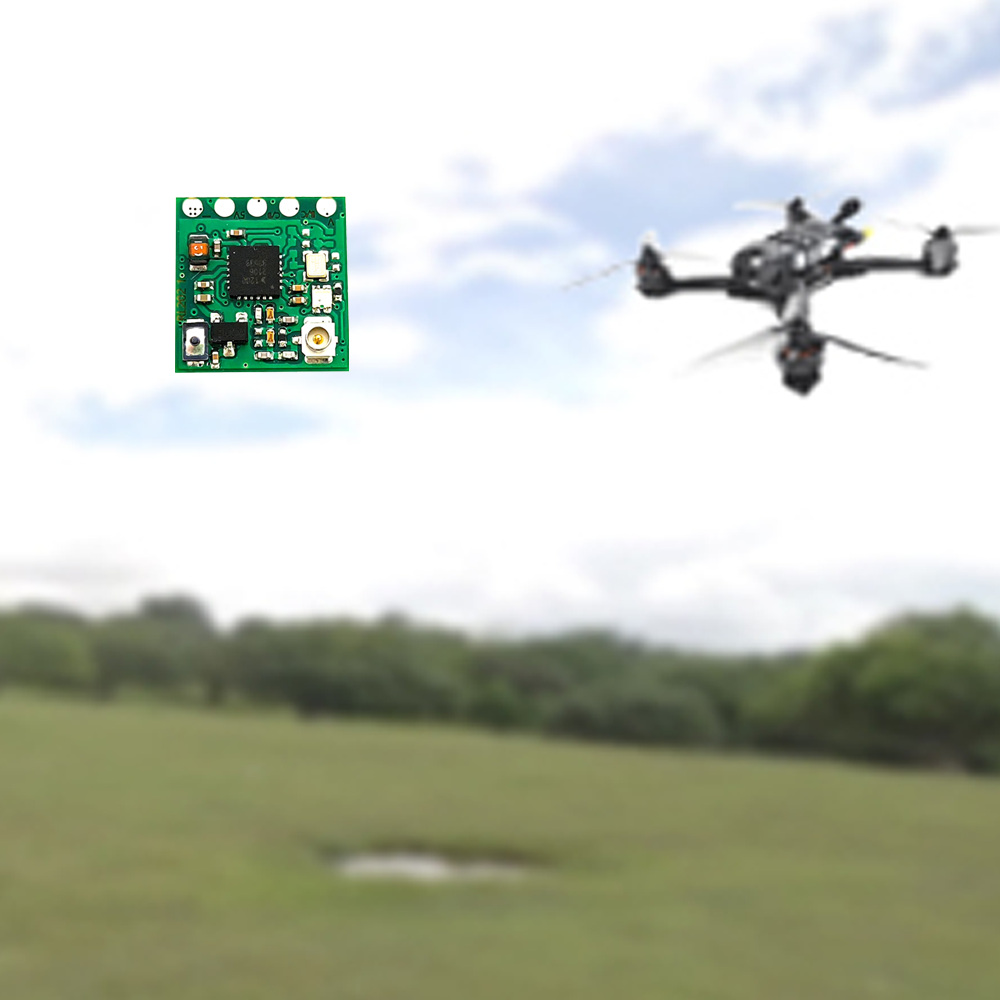

WFLY RG202Mini receiver is specially matched with WFLY MG216 JR Bay RF module. Adopt WFLY's third-generation communication protocol, with long-distance, adaptive interference avoidance, frequency hopping and two-way telemetry technology. 200Hz high refresh rate and 5ms ultra-low latency, built for long range FPV racing drones.
Supports CRSF, S.Bus, PPM signal input, up to 16 channel output. Ultra-lightweight only 0.8g, tiny dimension 14.0mm*14.5mm. Supports OTA wireless upgrade and real-time voltage telemetry, stable signal for woods, track, stadium flying scenarios.
Product Features
1. Designed for WFLY MG216 RF module, WFLY third-generation communication protocol
2. Long range >1.1km in open area without interference, adaptive interference avoidance & frequency hopping
3. 200/135Hz high refresh rate, 5ms low latency (CRSF)
4. LoRa modulation, stable 2.4GHz transmission
5. Support CRSF, S.Bus, PPM signal input, up to 16CH output
6. OTA wireless upgrade, no cable needed

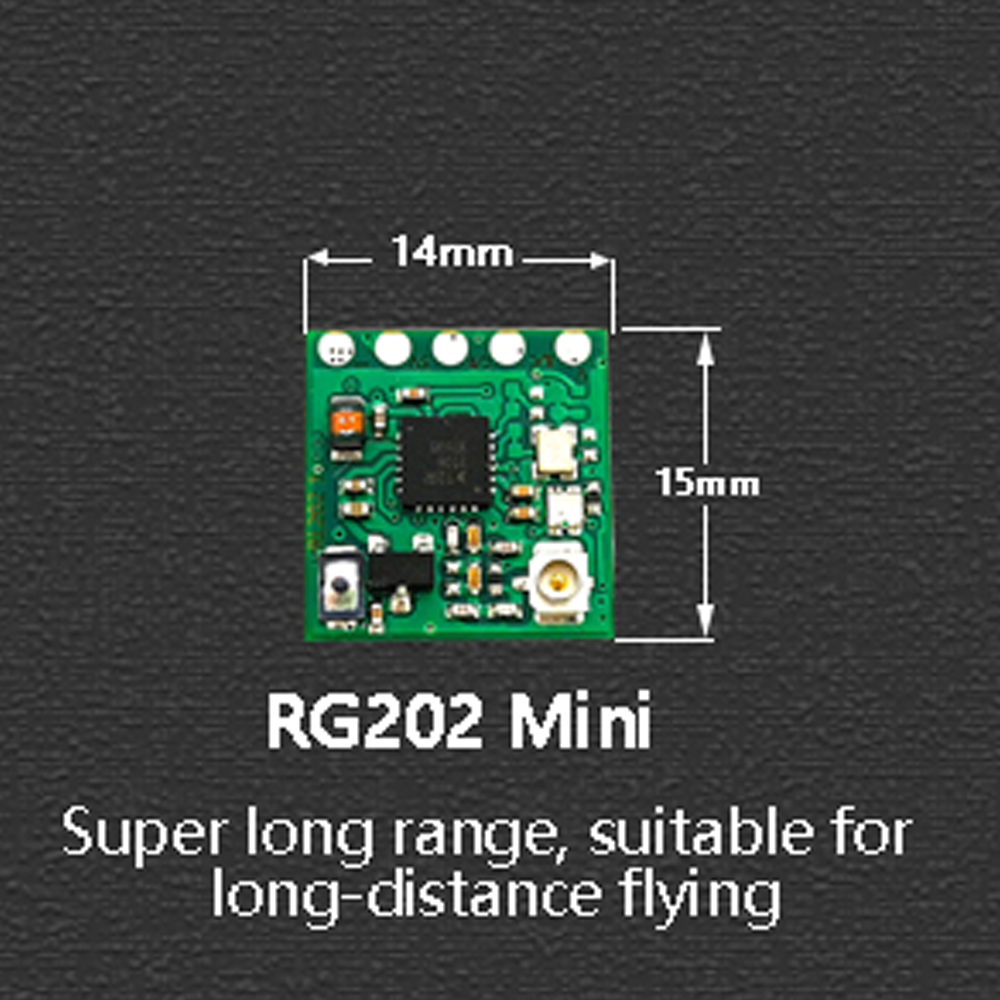

7. Ultra-light weight 0.8g (exclude antenna), tiny dimension 14.0mm*14.5mm
8. 3.5~5.5V power supply, external single antenna with 2dbi gain
Technical Specifications
| RG202Mini Receiver | |
|---|---|
| Product model | RG202Mini |
| Support | MG216 |
| Frequency band | 2.4GHz |
| working frequency | 2.400-2.483 GHz |
| Modulated emission | LoRa |
| Adjustable position | Power adjustable |
| Transmit power | 10dBm |
| Flying range | >1.1km (No interference, open area) |
| High refresh rate | 200/135Hz |
| Delay | 5ms (CRSF) |
| Wireless protocol | WFLY Third Generation Communication Protocol |
| Signal input | CRSF、S.Bus、PPM |
| Transmission channel | Up to 16CH |
| Antenna type | External single antenna |
| Antenna gain | 2dbi |
| Power supply range | 3.5~5.5V |
| Online upgrading | OTA wireless upgrade |
| Weight | 0.8g (exclude antenna) |
| Product dimensions | 14.0mm*14.5mm |
Standard Package Included
1. WFLY RG202Mini Receiver
2. External 2dbi Antenna
3. Installation wires
4. User Manual
Core Advantages
Long Range & LoRa
Up to >1.1km flying range, LoRa modulation with strong anti-interference ability for FPV.
200Hz High Refresh / 5ms Low Latency
Ultra-low latency CRSF signal, smooth control experience for FPV racing.
Multi Signal Input
Support CRSF, S.Bus, PPM, compatible with most FPV flight controllers.
OTA Wireless Upgrade
Update firmware wirelessly, no need to unplug and connect cable.
Ultra-Mini & Ultra-Lightweight
Only 0.8g without antenna, tiny 14.0*14.5mm size, minimal load for micro FPV drones.
Perfect Match MG216
Optimized for WFLY MG216 JR Bay RF module, two-way telemetry support.
Why Choose WFLY RG202Mini Receiver
WFLY RG202Mini is a compact 2.4G receiver specially paired with MG216 RF module for FPV racing drone. It adopts WFLY third-generation communication protocol, LoRa modulation brings excellent anti-interference performance. It supports up to 16 channels output, OTA firmware upgrade and voltage telemetry. Ultra-light 0.8g tiny design is ideal for micro FPV quadcopters.
Great for flying in woods, tracks and stadium. Stable signal and low latency, ideal lightweight upgrade receiver for MG216 radio system.
Get QuoteContact Us
For orders, OEM projects, or technical support of WFLY RG202Mini Receiver, please contact us directly.
